Key Features

• Custom mainboard 13th Gen Intel Quad-Core CPU. *GB DDR5 Industrial Grade RAM.

• USB-C 3xUSB A 3.2, Bridged 2.5GB Ethernet Ports

• User-accessible M2 NVMe SSD storage (slot used if ordered with factory fitted storage)

• Optional Modular Output Boards: standard DAC, Performance DAC, SpDIF and PhoenixUSB Board.

Product Specifications

File Formats

WAV, AIFF, FLAC, ALAC, AAC, MP3, DSF, DFF
MQA Supported

Sample Rates

PCM: Up to 32bit/768KHz
DSD: Up to DSD256 via DoP, up to DSD512 via Native DSD

(24bit/192KHz maximum output on SPDIF & BaseDAC modules)

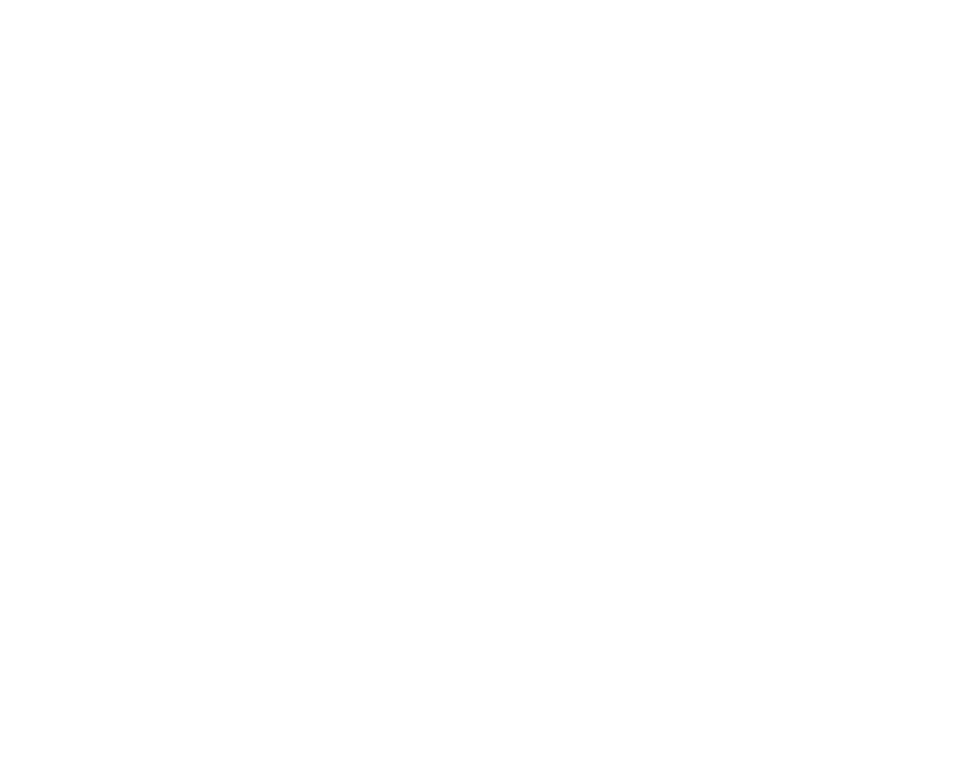

Connectivity

USB (DACs, Imports, Backups, USB Drive playback)
3 x USB 3.2
1 x USB-C

Network
2 x 2.5gb Ethernet, Bridged (wired only)

Other
1 x Digital Output Module Bay
1 x Storage Expansion Bay (1 x M2 nVME SSD)
1 x HDMI (service only)
1 x DC Power Inlet

Streaming Sources

Streaming Services*
Qobuz
TIDAL
Deezer
HighResAudio
IDAGIO
Spotify Connect
TIDAL Connect
Qobuz Connect
Internet Radio & Podcasts
Radio Paradise FLAC and Interactive services

Local Music Files
Internal M2 NVMe SSD
NAS Drives/Servers
USB Drives**

*Premium subscription required
**’Folder View’ only, full library integration unavailable

CD Ripping

Available via external USB Optical Drive + installed SSD storage

Metadata Sources: Discogs, FreeDB, GD3, Musicbrainz

Ripping format options: FLAC or WAV

Control Software & Integrations

Innuos Sense App for iPadOS/iOS v16.6 (or later)

Innuos Sense App for Android 7 (or later)

Innuos Sense App for Amazon Fire OS 7 (or later)

Any web browser via my.innuos.com or IP address.

Optional:

Roon (Core and Endpoint modes supported)

HQPlayer (NAA Endpoint mode only)

AssetUPnP (UPnP Server mode only)

Power

19v DC Input, external Switch-Mode Power Supply (Optional LPS1 upgrade available)

Dimensions

Dimensions: 240mm x 200mm x 80mm (W x D x H)

Contents

Innuos Stream 1
Switch Mode Power Supply
AC Power Cable (2.0m)
Ethernet Cable (2.0m)
Quick Start Guide
